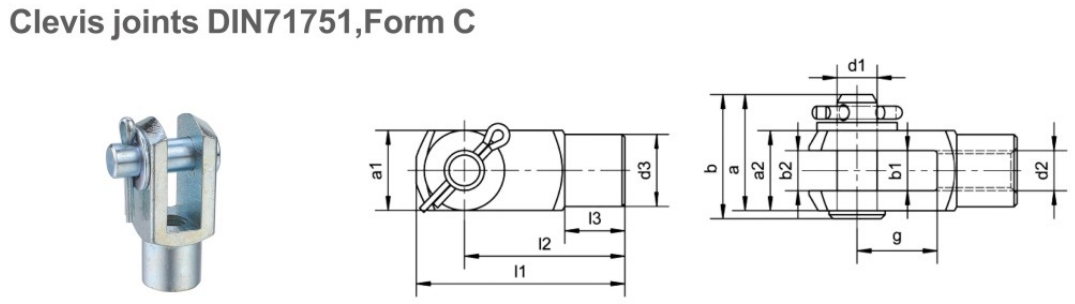

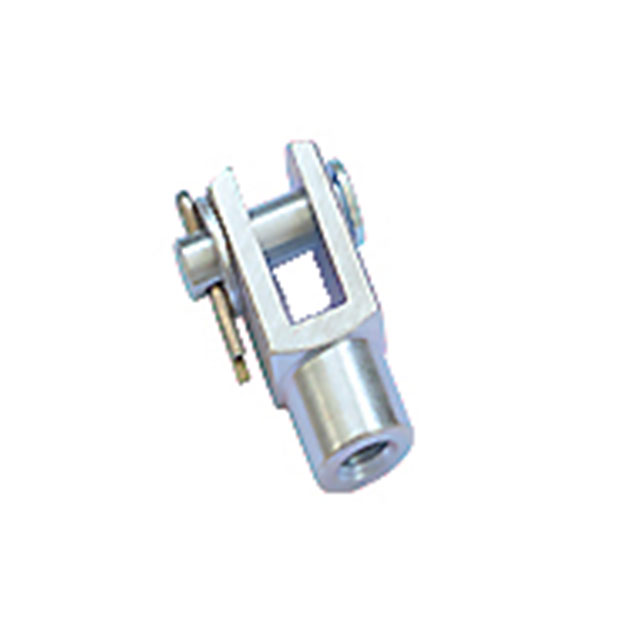

مفصل Clevis DIN71751 ، نموذج C

غرض

د1

h9

د2

g

±0.5

a

a1

h11

a2

+0.5

-0.2

b

ب1

ب13

ب2

+0.7

+0.15

د3

l1

±0.5

l2

±0.4

l3

±0.3

وزن

(ز/قطعة)

C4x8

4

M4x0.7

8

12

8

8

13

4

4

8

21

16

6

7

C4x16

4

M4x0.7

16

12

8

8

13

4

4

8

29

24

6

9

C5x10

5

M5x0.8

10

15

10

10

16.5

5

5

9

26

20

7.5

12

C5x20

5

M5x0.8

20

15

10

10

16.5

5

5

9

36

30

7.5

16

C6x12

6

M6x1

12

18

12

12

19.5

6

6

10

31

24

9

21

C6x24

6

M6x1

24

18

12

12

19.5

6

6

10

43

36

9

27

C8x16

8

M8x1.25

16

23

16

16

25

8

8

14

42

32

12

49

C8x32

8

M8x1.25

32

23

16

16

25

8

8

14

58

48

12

66

C10x20

10

M10x1.5

20

29

20

20

31

10

10

18

52

40

15

98

C10x40

10

M10x1.5

40

29

20

20

31

10

10

18

72

60

15

140

C12x24

12

م12x1.75

24

35

24

24

38

12

12

20

62

48

18

164

C12x48

12

م12x1.75

48

35

24

24

38

12

12

20

86

72

18

218

C14x28

14

M14x2

28

40

27

27

43

14

14

24

72

56

22.5

243

C14x56

14

M14x2

56

40

27

27

43

14

14

24

101

85

22.5

323

C16x32

16

M16x2

32

45

32

32

48.5

16

16

26

83

64

24

368

C16x64

16

M16x2

64

45

32

32

48.5

16

16

26

115

96

24

497

C18x36

18

M18x2.5

36

50

36

36

53.5

18

18

30

94

72

27

516

C20x40

20

M20x2.5

40

53

40

40

57

20

20

34

105

80

30

713
